ALPHA W5500 以太网模块

W5500是一款SPI接口的独立以太网控制器。集成硬件协议栈,最大通信速度为100M,支持全双工和半双工。因包含硬件协议栈,对单片机资源消耗较少。

特点

  • 全硬件TCP/IP协议栈
  • 8个独立的硬件Socket,各路通信互不影响
  • 32bytes片上缓存供TCP/IP包处理
  • 集成802.3以太网MAC
  • 集成10BaseT / 100Base-T以太网PHY
  • 主机接口:SPI高速串行外设接口(最高80Mhz )
  • 低功耗,工作温度40℃左右
  • 支持掉电模式 & UDP网络唤醒
  • 工作电压3.3V,I/O 5V耐压
  • 支持自动协商(全/半双工,10M/100M)
  • 不支持自动极性转换

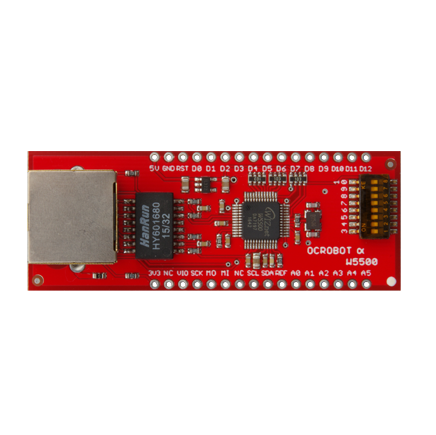

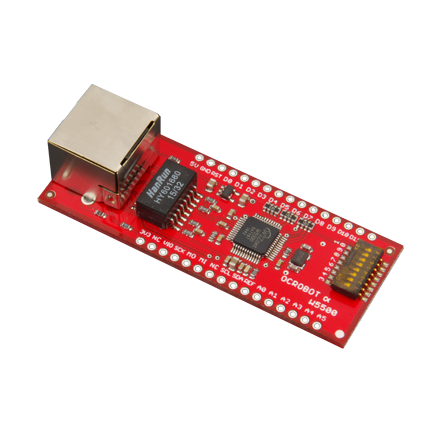

参考图片

例程

DHCP-based IP printer

本例程的主控为MEGA2560芯片。

/*
  DHCP-based IP printer

 This sketch uses the DHCP extensions to the Ethernet library
 to get an IP address via DHCP and print the address obtained.
 using an Arduino Wiznet Ethernet shield.

 Circuit:
 * Ethernet shield attached to pins 10, 11, 12, 13

 created 12 April 2011
 modified 9 Apr 2012
 by Tom Igoe

 */

#include <SPI.h>
#include <Ethernet2.h>

// Enter a MAC address for your controller below.
// Newer Ethernet shields have a MAC address printed on a sticker on the shield
byte mac[] = {
  0x00, 0xAA, 0xBB, 0xCC, 0xDE, 0x02
};

// Initialize the Ethernet client library
// with the IP address and port of the server
// that you want to connect to (port 80 is default for HTTP):
EthernetClient client;

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  // this check is only needed on the Leonardo:
  while (!Serial) {
    ; // wait for serial port to connect. Needed for Leonardo only
  }

  // start the Ethernet connection:

  Ethernet.w5500_cspin = 10;//主控为mega2560,若主控为atmel mgea328或者LGT8f328p则不需要该定义

  if (Ethernet.begin(mac) == 0) {
    Serial.println("Failed to configure Ethernet using DHCP");
    // no point in carrying on, so do nothing forevermore:
    for (;;)
      ;
  }
  // print your local IP address:
  Serial.print("My IP address: ");
  for (byte thisByte = 0; thisByte < 4; thisByte++) {
    // print the value of each byte of the IP address:
    Serial.print(Ethernet.localIP()[thisByte], DEC);
    Serial.print(".");
  }
  Serial.println();
}

void loop() {

}

若主控为mega2560,则需要添加Ethernet.w5500_cspin = 10; 若主控为atmel mgea328或者LGT8f328p则不需要添加。

下载
